Hình ảnh lớn :  FTTH Fiber Optic Splice Closure

Thông tin chi tiết sản phẩm:

Place of Origin: Guangdong, China
Hàng hiệu: KCO, Kocent Optec Limited
Chứng nhận: iSO9001, RoHS
Model Number: Inline 2-2-01-xFO

Thanh toán:

Minimum Order Quantity: Negotiation
Giá bán: Negotiable
Packaging Details: Carton box, wooden pallet
Delivery Time: 5~14 working days
Payment Terms: T/T, L/C
Supply Ability: 50,000pcs/week
Contact Now
Chi tiết sản phẩm
Type: Inline, horizontal type Cable ports: 4 ports
Cable diameter: 8.0~22.0mm Min. capacity: 4 cores
Max capacity: 96 cores Material: PPR, ABS, PC, PP
Weight: 3KG Size: 460x180x120mm

Horizontal type 4 ports fiber optic splice closure 2 input ports, 2 output ports





In-line type fiber optic splice closure also call horizontal type optical fiber splice enclosure box or optical fiber splice closure, or fiber splice enclosure box. We can provide Horizontal type fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.



Quick detail about horizontal fiber optic splice closure:

- Name: Horizontal fiber optic joint splice closure box

- Part number: Inline 2-2-01

- Cable entry port: 4 ports

- Capacity of fibers: 96 cores

- Size: 380*175*80mm

- Weight: about 1.5kg

- Material: ABS/ PC Plastic

- Sealing structure: Silica gel

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃



Features:

- Great corrosion resistance
- Suitable for any harsh environment
- Anti-lighting

- Great water-proof function.

Applications:
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks

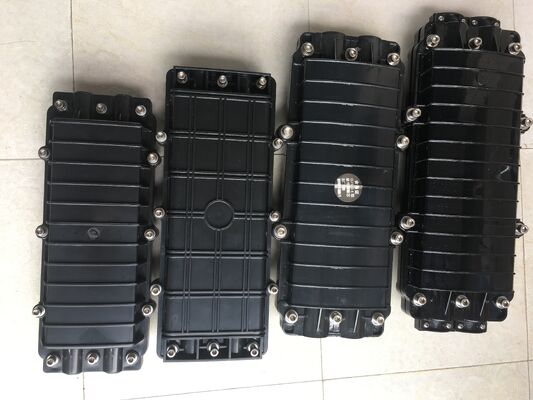

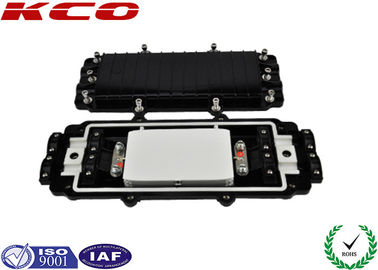

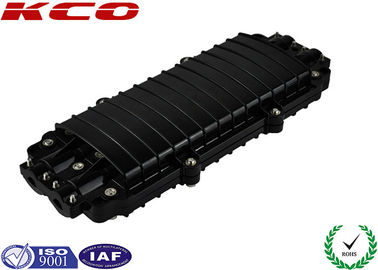

Product pictures:

FTTH Fiber Optic Splice Closure

FTTH Fiber Optic Splice Closure

Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user



Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.

FTTH Fiber Optic Splice Closure



Package:

FTTH Fiber Optic Splice Closure



OEM service:

If you want to display your own brand LOGO on the fiber optic splice enclosure box or package carton box, it is no any problem. When you order quantity is more than 1000 pcs, we can print it FREE to you. Call us or  send e-mail to us with your detail requirement!



Shipping:
By International express: TNT, DHL, UPS, special line express, etc
By air: CA, ZH, CZ, AA, AC, BA, etc
By sea
