FTTH MPO MTP Patch Cord , MPO MTP Cassette with OM3 LC Duplex Adapter

  • FTTH MPO MTP Patch Cord , MPO MTP Cassette with OM3 LC Duplex Adapter
  • FTTH MPO MTP Patch Cord , MPO MTP Cassette with OM3 LC Duplex Adapter
Place of Origin Guangdong, China
Hàng hiệu KCO
Chứng nhận RoHS, ISO9001
Model Number MPO-24LC-Cassette
Minimum Order Quantity Negotiation
Giá bán Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Connector 1 MPO, MTP Connector 2 LC/PC or customized
Mode SM, OM2, OM3, OM4 Type 24 fibers Cassette
Color aqua, yellow, pink, violet, customized Length 0.5m, 1.0m, 1.5m, customized
Điểm nổi bật

breakout fiber optic cable

,

fiber optic breakout cable
Để lại lời nhắn
Mô tả sản phẩm

FTTH MTP MPO Fiber Breakout Cable , MPO MTP Cassette with OM3 LC Duplex Adapter





Descriptions:

MPO/MTP Cassettes are pre-terminated, pre-tested, and come with 12 fibers or 24 fibers MPO/MTP connectors on the back that break out to single or array connectors on the front.

Cassettes are custom-built to your configuration needs and modules are custom-built to to meet your specific application needs.

Select from a variety of connectors including LC, SC and MU for OM1, OM2, OM3, OM4, and OS2 deployment.


Features:
- Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes
- 100% factory tested with test results included with each cassette
- Plug-n-play cassette eliminates the need for field termination or splices
- Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes
- MPO/MTP adapter swivel allows for easy cable routing and proper bend radius
- All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back



Cassette applications:
FTTH MPO MTP Patch Cord , MPO MTP Cassette with OM3 LC Duplex Adapter 0



* Remark:
24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette.
12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette.


Color:
Connector: LC/SC/MU SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet,  MPO/MTP SM-Green, MM-Beige, OM3-Aqua.
Adaptor: LC/SC SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet, MU-Brown, MPO/MTP-Black,



Applications:

- FTTH, CATV, LAN, MAN, WAN, Test, Measurement

- Video transmission, Data transmission

- Active Device Termination

- Premise Installations

- Telecommunication and Data processing Networks

- Industrial, medical, military

- Systems Integration for Long Haul, Metro and Access Network

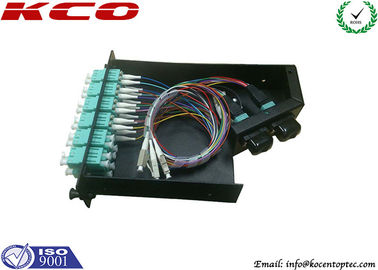

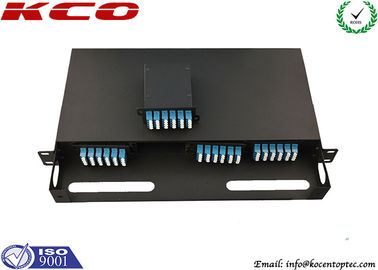

Product picutures:

FTTH MPO MTP Patch Cord , MPO MTP Cassette with OM3 LC Duplex Adapter 1





MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
