Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment

  • Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment
  • Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment
Place of Origin America
Hàng hiệu AETeP
Chứng nhận ISO9001, RoHS, UL
Model Number AT810
Minimum Order Quantity Negotiation
Giá bán negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 working days
Payment Terms Western Union, T/T, L/C
Supply Ability 1000 pcs/month

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Model AT810 Dynamic Range 28dB-30dB
Short distance Resolution 5cm Life Duration 12 hours
Testing length 120km Power 12V
Làm nổi bật

fiber optic fittings

,

fiber optic tools and equipment
Để lại lời nhắn
Mô tả sản phẩm
Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment


Product Name: AETeP optical time-domain reflectometer
Model: AT810

Introductions:
- 7 inches full touch large color screen, a touch too intuitive GUI, provide you with an unprecedented test experience; lightweight, portable, rugged, 12 hours extraordinary life, ideal for fiber optic test environment.
- AT800 series has optical performance, make sure your test accuracy; also provide VFL, power meter, fiber inspection function and other options, is the ideal choice for testing short-range fiber.

Main feature:
- 7 inches wide touch screen, professional, efficient UI (user interface) and UE (User Experience)
- Lightweight, portable, full-featured, tablet design
- Optical performance: Event small blind 1m, 5m little attenuation dead zone
- Dynamic Range: 28dB-30dB
- Short distance Resolution: 5cm
- Life Duration: 12 hours
- Full-featured: Option supports VFL, power meter, light source and the optical fiber end face detector

Applications:
- FTTH network construction, deployment, maintenance, certification
- Local fiber optic network construction, deployment, maintenance, certification
- Metro optical network construction, deployment, maintenance, certification

Specifications:
Model AT810 AT820 AT830
Wave length (nm) 1310nm±20nm; 1550nm±20nm; 1625nm±20nm
Dynamic range (dB) a 30/28/27 34/32/31 37/35/34
Events blind area(m)b 2 1 1
Attenuation blind area(m)c 10 5 5
Pulse width 5ns 10 ns 30 ns 50 ns 100 ns 200 ns 500 ns 1μs 2μs 5μs 10μs 20μs
Scale range 100m 400m 1.5km 3km 6km 12km 25km 50km 100km 200km 400km
Sampling resolution(m) 0.1~12.8 0.05~12.8 0.05~12.8
sampling points 64000
Group of refractive index range 1.30000~1.70000
Distance measurement uncertainty(m) ±(0.75m+0.005%×fiber length+sampling resolution)
Group of refractive index range 1.30000~1.70000
linearity(dB/dB) 0.05
Loss threshold(dB) 0.01dB
Loss of resolution(dB) 0.001 dB
Accuracy of reflection(dB) ±2 dB
Measuring time range 5s~5min,real-time
Real-time refresh rate 4 times/s
display 7in (178mm), 800x480 TFT Enhanced outdoor touch screen
Connection port USB2.0x1, USB power supply DC5V±0.05V@500mA RJ45x1, LAN, 10M/100M Macro SDx1, support 64GB
Storage 1GB Memory(Support 10000 OTDR curve) 8GB SD card (support 80000 OTDR curve)Optional
Battery 7.4 V 5300 mah lithium-ion battery pack, 7.4 Wh support 12 hours continuous working time
Machine power consumption <3W
Power supply Power ac/dc adapter: ac input: 100-240V 50~60hz. DC output: 12v 1.5A. Total power: 18w
Connector type Interface: Standard PC, equipped with APC (when ordering, please declare) Adapter: Standard FC, equipped with SC/ST/LC (please statement when ordering)



Mechanical and environmental parameters:
Size (H*W*L) 196*172*72mm
Weight( included battery) ＜2kg
Operating temperature -10℃~+50℃
Storage temperature -40℃~+70℃
Relative humidity 0%-95% (condensation)
Basic Function:
Measurement model Manual, automatic, real time
Custom threshold Settings 8 groups
Range migration Settings Have, and it can display the negative events
Interface style 4 types optional
Automatic correction Have
Online help Have
Restore the factory Settings Have
Support Chinese name Have
Screenshot function Have
Touch screen soft keyboard input Have
Browser Have
Timing shutdown and dormancy Have
Dual wavelength test Have
Real-time tests Have
Language Chinese, English, Spanish, French, Russian, Italian, Portuguese, German, Korean, Arabic for option)
Remote testing Have
Cloud application management Have



Product pictures:

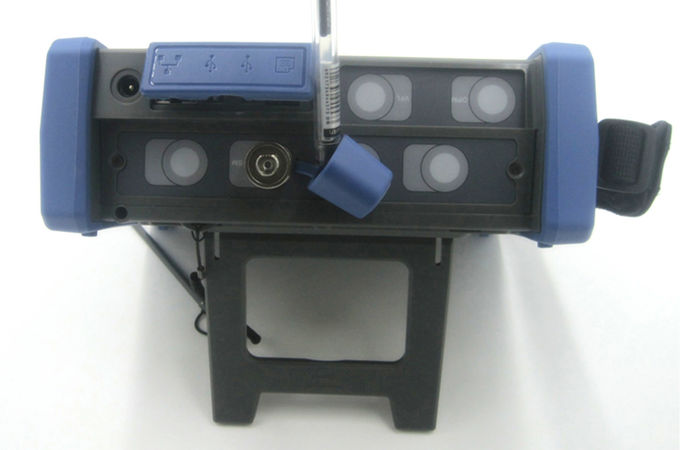

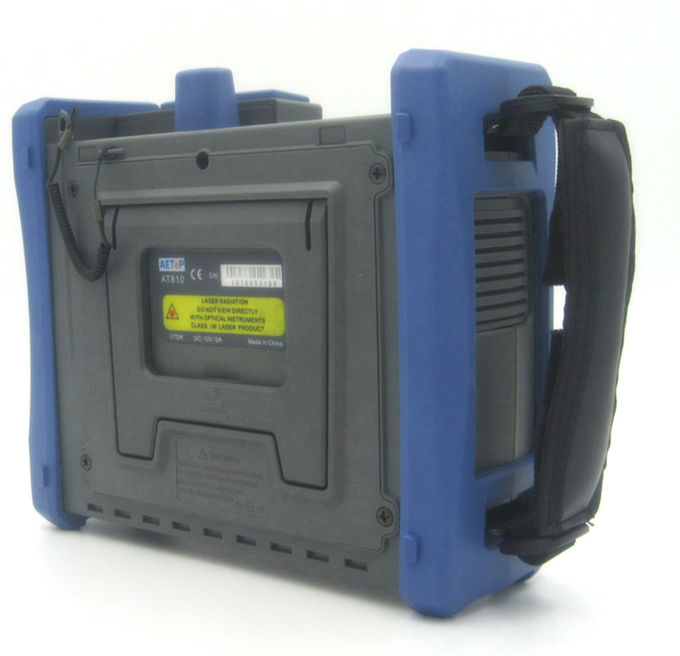

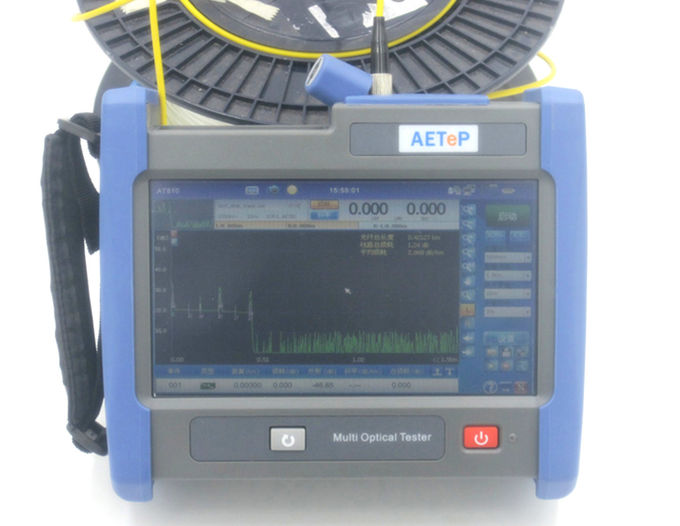

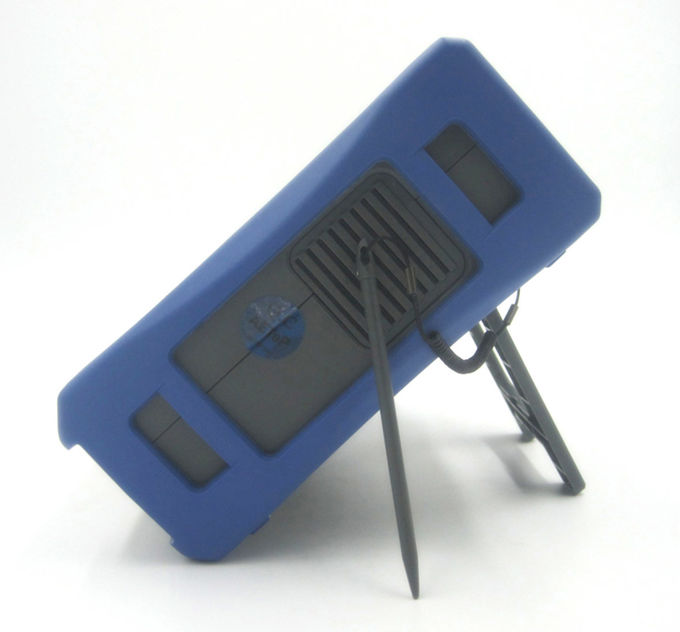

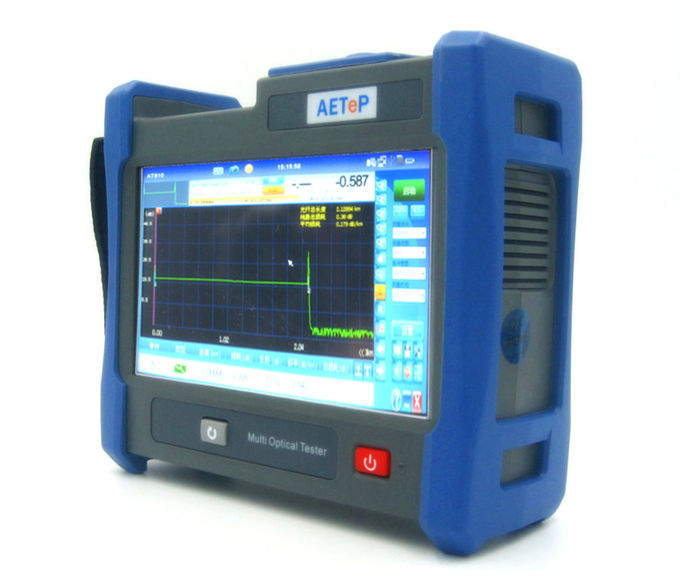

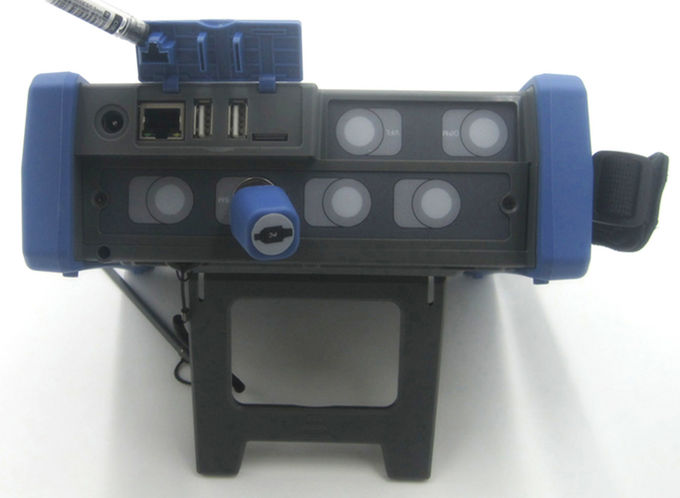

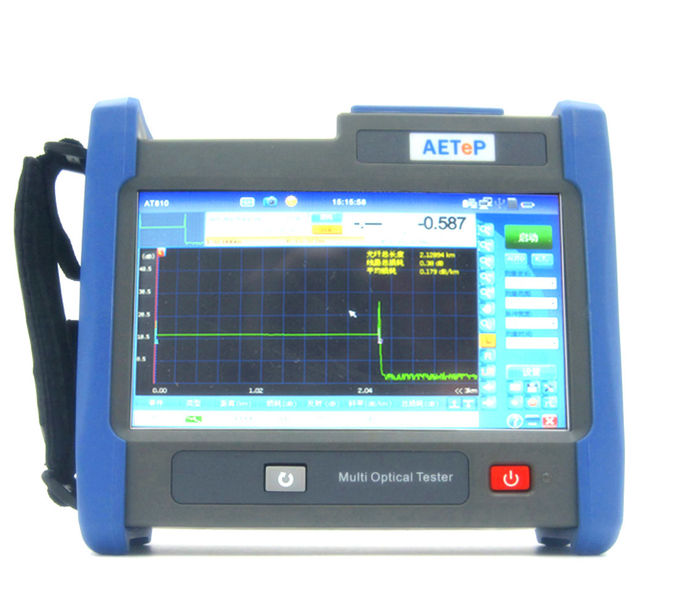

Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment 0Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment 1Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment 2Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment 3Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment 4Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment 5Optical Time Domain Reflectometer OTDR Fiber Tester , Fiber Optic OTDR Test Equipment 6
