UPC APC PC Fiber Optic Polishing Equipment , Fibre Optic Grinding Machine

  • UPC APC PC Fiber Optic Polishing Equipment , Fibre Optic Grinding Machine
  • UPC APC PC Fiber Optic Polishing Equipment , Fibre Optic Grinding Machine
Place of Origin China
Hàng hiệu KCO, Kocent Optec Limited
Chứng nhận ISO9001
Model Number KCO-20A
Minimum Order Quantity Negotiation
Giá bán negotiable
Packaging Details wooden box, wooden pallet
Delivery Time 5~8 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 10,000 set/ month

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Ferrule UPC, APC, PC Connector SC, FC, LC, ST, MTRJ, DIN, etc
Connector no. 8~24 connectors Ferrule type 2.5um, 2.0um, 1.25um
Return loss 50dB Libration 1.0g: 5~100Hz 45min
Làm nổi bật

fiber optic cutting machine

,

optical fiber polishing machine
Để lại lời nhắn
Mô tả sản phẩm

UPC APC PC Fiber Optic Polishing Equipment , Fibre Optic Grinding Machine



We can supply brand new of fiber optic polishing machine in square type and central type. We also can supply OEM, ODM servicer for fiber optical polisher, can help you paste your own Brand LOGO on the machine and package. The machine warranty time is 1 year. When you are using the machine, if need to buy the Jigs of tools, we also can supply to you too. Please contact with us by phone or by e-mail to get more informations about them.



Fiber optic polishing machine features:

1.Can process most kinds of standard fiber optic connectors, such as FC/UPC, SC/UPC, ST/UPC, LC/UPC, MU/UPC, FC/APC, SC/APC, MT-RJ, E2000, etc

2. Adapt to four corners pressurized, jig will be installed stable

3. Compact size

4. Excellent connector end force polishing quality

5. Designed for volume production, high productivity (Can polishing 18-40 connectors per time)

6. Save material and low cost for grinding

7. Made by high quality, hardened steel S136



Polishing Material specification:

No. Material Type Remark
1 ZrO2 Ceramic Ferrules φ2.5mm, φ2.0mm, φ1.25mm PC, APC
2 Quartz capillary φ1.8mm Plane, inclined plane and spherical surface
3 Glass materials φ1.0mm, φ10.0mm
4 Stainless steel and titanium alloy φ3.0mm, φ2.5mm
5 Colophony material MT-RJ, MPO, MPT etc

Remark: User should use the recommended polishing liquid and polishing films for KCO-20A polisher. We could not ensure the polishing quality meet user’s requirements if other types of polishing liquid and films were used.



Fiber optic polishing machine PC/UPC (R20) Standard Polishing Results:

Polishing Process: 4 processes (not including “Remove Glue ”)

Return Loss: ≥50 dB

Top Curvature: 10~25 mm

Top Excursion: ≤50 nm

Core Hollow: ≤0.1 um

Surface Roughness: ≤50 nm



KCO-20A fiber optic polishing machine Technical Parameters:

Machine Size: L240(mm) × W240(mm) × H260(mm)

O.D. of Rotation Plate: 127 mm(5 inch)

Time Settings: 99 min 99 sec (Max)


Speed for Rotation Plate: 90 rpm

Height of Plate Jumpiness: <10 um

Pressure Configuration: 21 ~ 36 N/cm2

Work Temperature: 10℃~40℃

Relative Humidity: 15%~85%

Noise: unloading Less 50 dB

Libration: Working Status 0.25g5~100Hz10min

Stopping Status: 0.50g/5~100Hz/10min

Power Input: 220~230VAC 50Hz/60Hz

Electric Power: 40W

Net Weight: 24 kg



Product pictures:

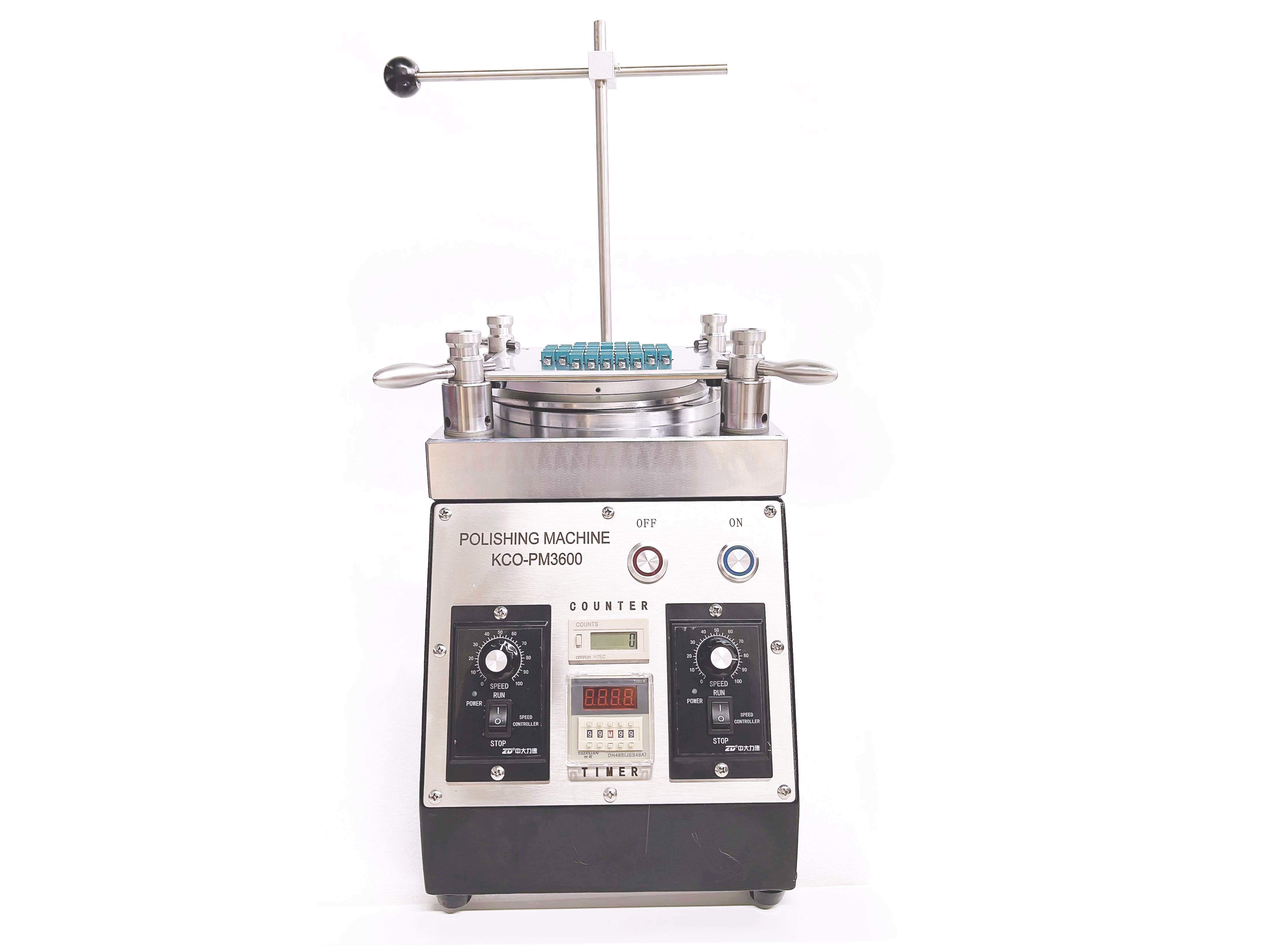

UPC APC PC Fiber Optic Polishing Equipment , Fibre Optic Grinding Machine 0



Storage Conditions:

Temperature: -40℃~85℃

Relative Humidity: 15%~85%

Libration: 1.0g 5~100Hz 45min



Options for Polishing jigs which is suitable with fiber optic polishing machine:

No. Model Description Remark
1 FC-PC-20 FC/PC connector style jig, 20 positions φ2.50mm, 20 positions
2 ST-PC-20 ST/PC connector style jig, 20 positions φ2.50mm, 20 positions
3 SC-PC-20 SC/PC connector style jig, 20 positions φ2.50mm, 20 positions
4 FC-PC-24 FC/PC connector style jig, 24 positions φ2.50mm, 24 positions
5 ST-PC-24 ST/PC connector style jig, 24 positions φ2.50mm, 24 positions
6 SC-PC-24 SC/PC connector style jig, 24 positions φ2.50mm, 24 positions
7 MU-PC-24 MU/PC connector style jig, 24 positions φ1.25mm, 24 positions
8 LC-PC-24 LC/PC connector style jig, 24 positions φ1.25mm, 24 positions
9 MU-PC-40 MU/PC connector style jig, 40 positions φ1.25mm, 40 positions
10 LC-PC-40 LC/PC connector style jig, 40 positions φ1.25mm, 40 positions
11 FC-APC-18 FC/APC connector style jig, 18 positions φ2.50mm, 18 positions
12 SC-APC-18 SC/APC connector style jig, 18 positions φ2.50mm, 18 positions
13 MU-APC-18 MU/APC connector style jig, 18 positions φ1.25mm, 18 positions
14 LC-APC-18 LC/APC connector style jig, 18 positions φ1.25mm, 18 position
15 MTRJ-18 MTRJ connector style jig, 18 positions 18 positions
16 MPO-18 MPO connector style jig, 18 positions 18 positions



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
