16 Ports Outside Water Proof FTTH FTTB Fiber Optic Terminal Box KCO-FDB-16S

Place of Origin Guangdong, China
Hàng hiệu KCO, Kocent Optec Limited
Chứng nhận ISO9001
Model Number KCO-FDB-16S
Minimum Order Quantity Negotiation
Giá bán Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Liên hệ với tôi để có mẫu và phiếu giảm giá miễn phí.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Ứng dụng trò chuyện: sales10@aixton.com

Nếu bạn có bất kỳ mối quan tâm nào, chúng tôi cung cấp trợ giúp trực tuyến 24 giờ.

x
Thông tin chi tiết sản phẩm
Material ABS+PC Insertion loss 0.10dB
Return loss 55dB Connector SC, ST, LC, FC, E2000, etc
Application Outdoor, Wall mount, Pole mount Capacity 24 cores
Điểm nổi bật

optical termination box

,

fibre termination box

Để lại lời nhắn
Mô tả sản phẩm

KCO-FDB-16S 16 Ports Outside Water Proofing 24 Cores FTTH FTTB

Fiber Optic Splitter Terminal Box

Quick Information:

Part number KCO-FDB-16S
Size 385x245x125mm
Capacity 16 / 24 cores
Material Plastic ABS+PC
Cable outdoor cable or FTTH cable
Cable diameter 0.9~26mm
Adapter SC, LC, FC, ST, E2000, etc
Cable port 9 ports
Can Install 1x24 splitter, 1x16 splitter, 1x12 splitter, 1x8 fiber splitter, 1x4 splitter, 1x2 splitter
Color Black


Product introduction:
- Optical distribution terminal box can be used in the connection and dispatch of outdoor optical fiber communication links, available for the connection of optical cable, optical fiber and patch cord, with the advantages of artistic appearance, convenient operation and long service life.
- The wall mountalbe fiber optic terminal box design to use to building or pillar wall mounting. It can use for indoor or outdoor application.
- As the product variety and customer requirements we also supply 3 in 1 terminal box to sastify more fibers capacity inquirement. It is not only can connect the cable and patch jumper, also can install the fiber splitter or other product as your need. With 4 different grids, you can use it install any product as you need.

Features:
- It is composed of case body, fiber optical splice tray and adaptor fixing frame.
- It is devised into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
- Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
- Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
- Adapter panel to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.
- Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.

Applications:
- FTTH, FTTx, FTTB
- LAN
- Data centers
- Local area network etc

Product picutures:

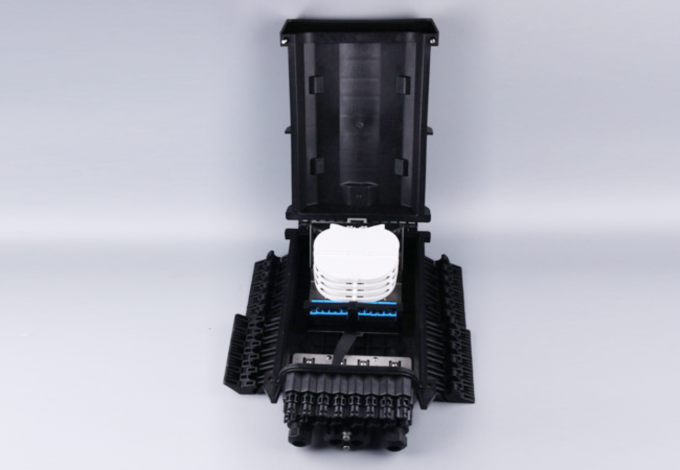

16 Ports Outside Water Proof FTTH FTTB  Fiber Optic Terminal Box KCO-FDB-16S 0

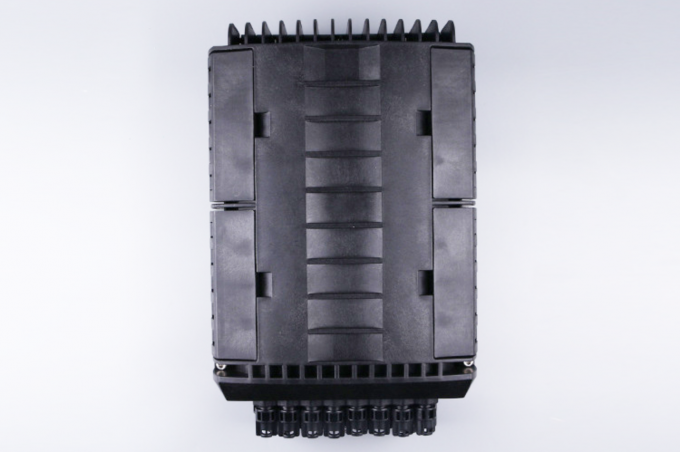

16 Ports Outside Water Proof FTTH FTTB  Fiber Optic Terminal Box KCO-FDB-16S 1

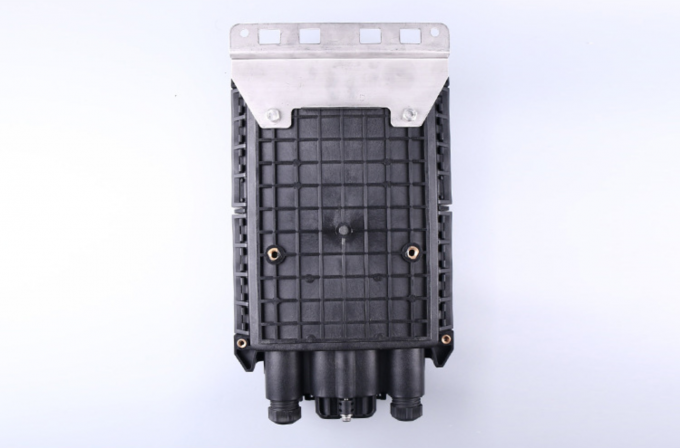

16 Ports Outside Water Proof FTTH FTTB  Fiber Optic Terminal Box KCO-FDB-16S 2
Operating Conditions:
- Temperature -45~+85
- Relative humidity 85%(+30 C)
- Atmospheric pressure 70KPa~106KPa

Qualification:
- Nominal work wave-length:850nm,1310nm,1550nm
- Connectors loss 0.2dB
- Insert loss 0.2dB
- Return loss >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection
- Grounding) >1000MΩ/500V(DC)

Parameters:

Type Outdoor FTB
P/N KCO-FDB-16S
Size 385x245x125mm
Color Black
Capacity Max. 24 cores
Insert loss ≤ 0.2dB
Return loss 50dB (UPC), 60dB (APC)
Durability 1000 Mating
Wavelength 850nm,1310nm,1550nm
Operating temperature -25°C~+40°C
Storage temperature -25°C~+55°C
Relative humidity ≤85%(+30°C)
Air pressure 70Kpa~106Kpa
Connector SC, FC, LC, ST, etc
Cable 0.9mm~26.0mm


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
