Thông tin chi tiết sản phẩm:
|Connector 1:||MPO, MTP||Connector 2:||LC/UPC, LC/APC or customized|
|Color:||black, beige||Length:||0.5m, 1.0m, 1.5m, customized|
Light Weight MTP MPO Fiber Breakout Cable 192 Cores LC Strands , Fan Out Cable

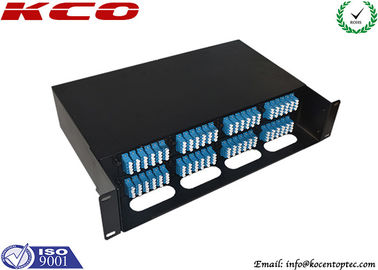

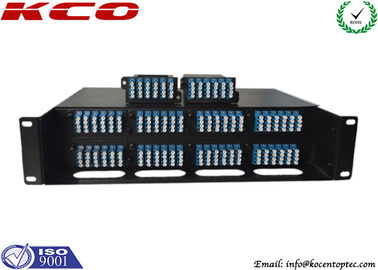

Typical MPO MTP fiber optic rack mount patch panel is with 2U 19’ standard size use for MTP MPO fiber breackout cable cassettle, inside the patch panel, it can be splice trays with 1xN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 2U MPO fiber patch panel can be with max 192 cores output optical strand, the output connectors can be SC/FC/ST/LC.
- Connector 1: MPO, MTP truck cable
- Connector 2: LC, FC, ST, SC or customized 4 to 24 strands cable
- Cable length: 0.5m, 1.0m, 1.5m or customized
- Patch panel size: 480x245x2U(mm)
- Capacity: 24 cores, 48 cores, 96 cores, 192 cores
- Maximum upload with 8 pcs of cassettes
- Adapter type: LC, SC, ST, FC or customized
- Integrate fiber patch panel with easy plug and play fiber cassette module for optimizing cabling management efficiency
- Light weight, easy to install
- Easy for installation and operation .
- Available for the installation of FC/SC/ST/LC adaptor.
- Mount to standard EIA 19'' rack rails
- Provides a complete system solution for connectivity
- Provide higher patch field density in fewer rack units saving valuable space
- Assures flexibility and ease of network deployment and moves, adds, and changes
MTP/MPO Connector Specifications:
|Type||Single Mode||Single Mode||Multi Mode|
|(APC Polish)||(UPC Polish)||(PC Polish)|
|Fiber Count||8,12,24 etc.||8,12,24 etc.||8,12,24 etc.|
|Fiber Type||G652D,G657A1 etc.||G652D,G657A1 etc.||OM1,OM2,OM3 etc.|
|Max. Insertion Loss||Elite||Standard||Elite||Standard||Elite||Standard|
|Low Loss||Low Loss||Low Loss|
|≤0.35 dB||≤0.75dB||≤0.35 dB||≤0.75dB||≤0.35 dB||≤0.60dB|
|Return Loss||≥60 dB||≥60 dB||NA|
|Durability||≥500 times||≥500 times||≥500 times|
|Insert-pull test||1000 times＜0.5 dB|
