Thông tin chi tiết sản phẩm:
|Min. capacity:||6 cores||Max capacity:||96 cores|
|Material:||ABS, PP, PC, PPR||Weight:||3.6KG|

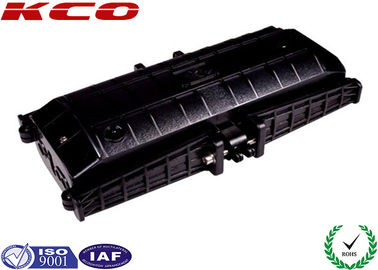

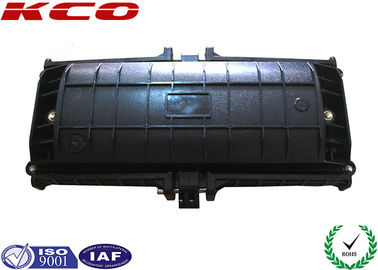

Six Ports Outdoor Fiber Optic Splice Enclosure Water Resistance Cable Television
Quick detail about horizontal fiber optic splice closure:
- Name: Horizontal fiber optic joint splice closure box
- Part number: Inline 3-3-02
- Cable entry port: 6 ports
- Capacity of fibers: 96 cores
- Size: 340*200*120mm
- Weight: about 3.6kg
- Material: ABS/ PC/PP Plastic
- Sealing structure: Silica gel
- Cable Diameter: 7.0-22.0mm
- Working temperature: -40℃ to 65℃
- Great corrosion resistance
- Great water-proof function.
- Suitable for any harsh environment
- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communications networks
- Local area networks
In-line 3-3-02 type fiber optic splice closure also call horizontal 3-3-02 type optical fiber splice enclosure box or optical fiber splice closure, or fiber splice enclosure box. We can provide Horizontal type fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project. The cable out-port can do 3 ports up to 10 ports. We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.
|1||Crust||1 set||Protecting fiber cable splices in whole|
|2||Fusion splice tray||Max.4 tray||Fix fiber, Protect heat-shrinkable tube Sleeve|
|3||Foundation||1 set||Fix cable,reinforced core and tray|
|4||Seal fitting||1 set||Air-proof between cover and bottom|
|5||Port plug||4 pieces||Sealing empty ports|
|6||Valve||1 set||Pressure measurement,inspection sealing||Configure by user|
|No.||Name of accessories||Quantity||Usage||Remarks|
|1||Heat shrinkable tube||Protecting fiber splices||Configuration as per capacity|
|2||Nylon tie||Fixing fiber with protective coat||Configuration as per capacity|
|3||Insulation tape||1 roll||Enlarging diameter of fiber cable for easy fixing|
|4||Seal tape||1 roll||Enlarging diameter of fiber cable which fits in with seal fitting||Configuration as per specification|
|5||Hanging hook||1 set||For aerial use|
|6||Label tape||1 piece||Sign fiber|
|7||Spanner||1 piece||Install bolts of shell|
|8||Desiccant||1 bag||Desiccating air.|
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
